Moomba PDM Box – 122140

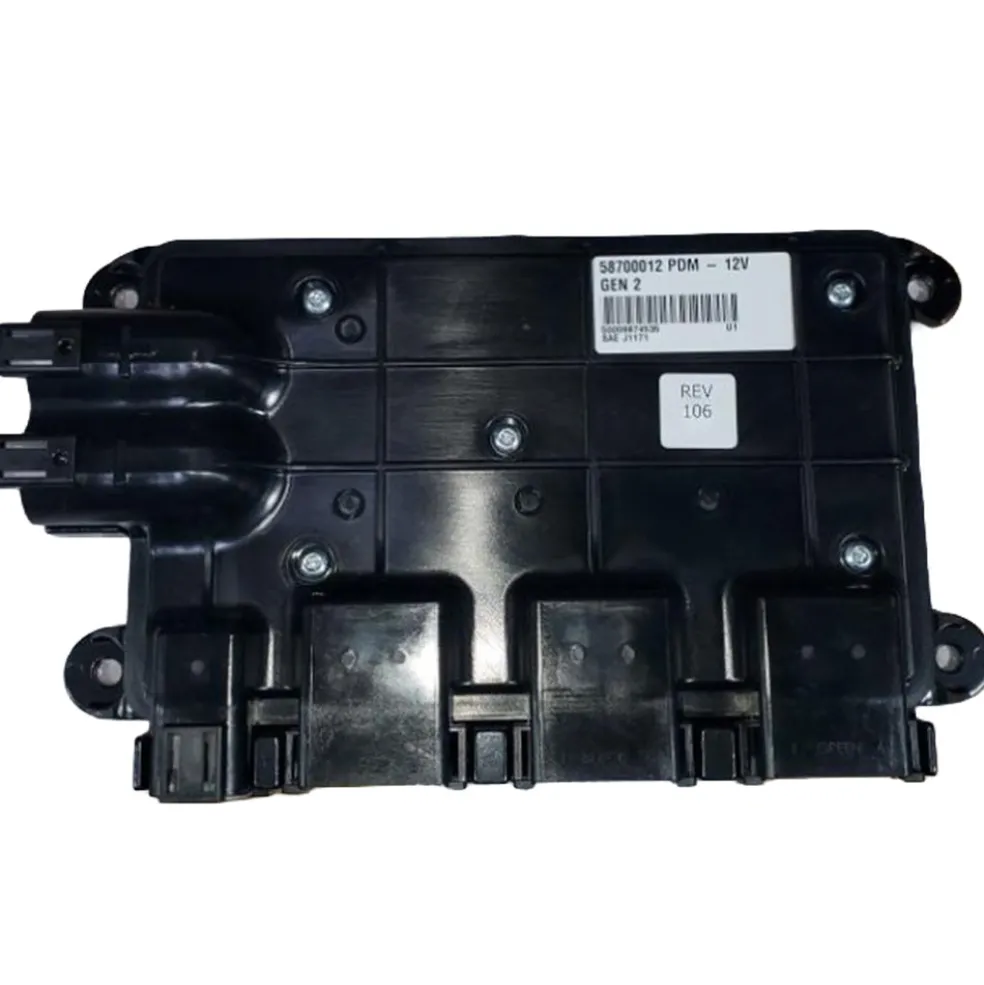

Moomba Power Distribution Module (PDM) Box – 122140

Install Instructions

1. Make sure battery switch is turned to the OFF position.
2. Locate the buss bar on the rear seat back in the engine compartment. Remove the red power cable going to the engine. Remove the power cable from the engine connection point.
3. Next, run the new power cable from the buss bar on the rear seat back to the battery switch. The ring terminal end with breaker should be located at the battery switch and ring terminal should be connected to common post of switch. Connect both ends and make sure wiring is secure.
4. Test Boat to verify all PDM functions work as designed and issue has went away.

*May ship directly to you from the manufacturer*
